M100 CCO10
Smart PV Monitor Transceiver
Introduction
The GateSea rapid shutdown PLC signal transmitter complies with the NEC2017&2023->2017&2020&2023(690.12) rapid shutdown specifications, as well as the SunSpec rapid shutdown protocol. It is available in both single and dual core options, with power supply choices of 85-264VAC for residential applications and 180-550VAC for commercial use.
Under normal conditions, the rapid shutdown transmitter sends a keep-alive signal to the rapid shutdown receiver to maintain power to the PV system. In the event of an emergency, the system can be rapidly shut down by activating the emergency stop switch or disconnecting the power supply to the transmitter.
Once the rapid shutdown signal transmitter is reactivated, the PV system resumes power production, allowing for a swift return to normal operation.

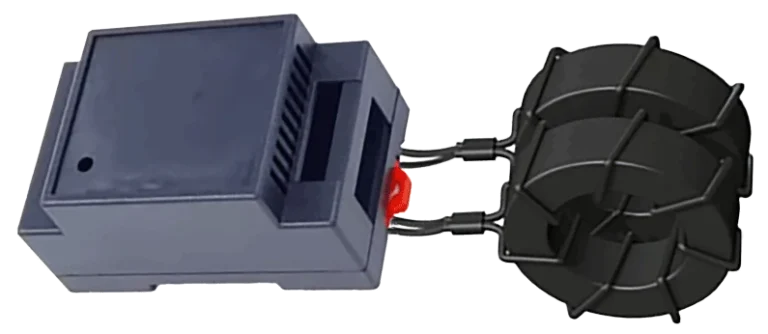

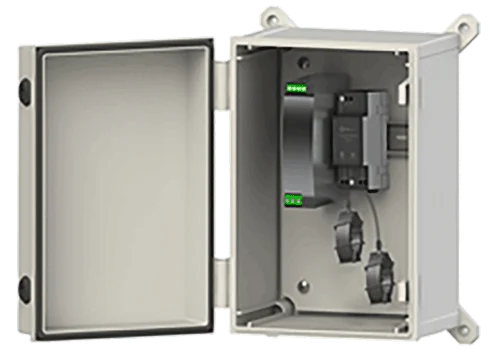

Appearance

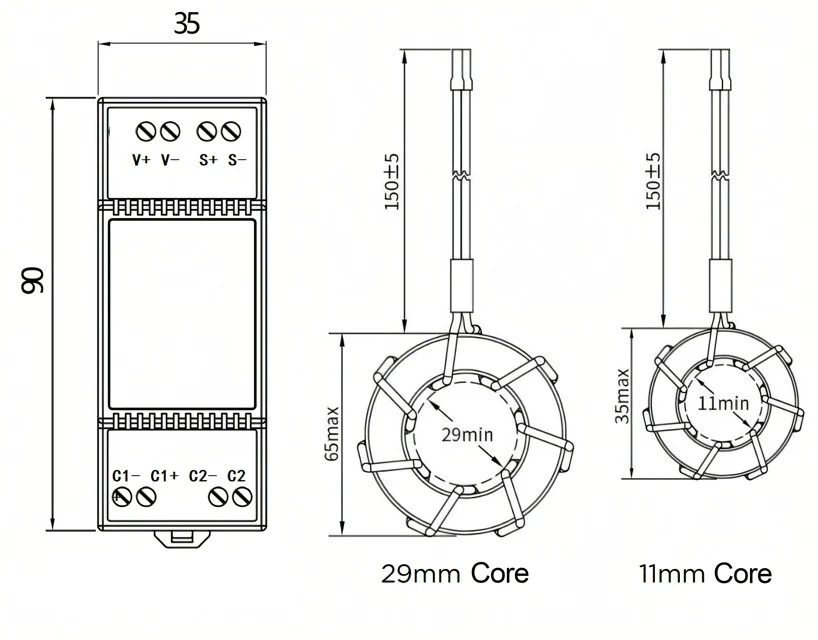

Dimensions
PLC core lead available for options: 150mm, 180mm, 300mm, 600mm

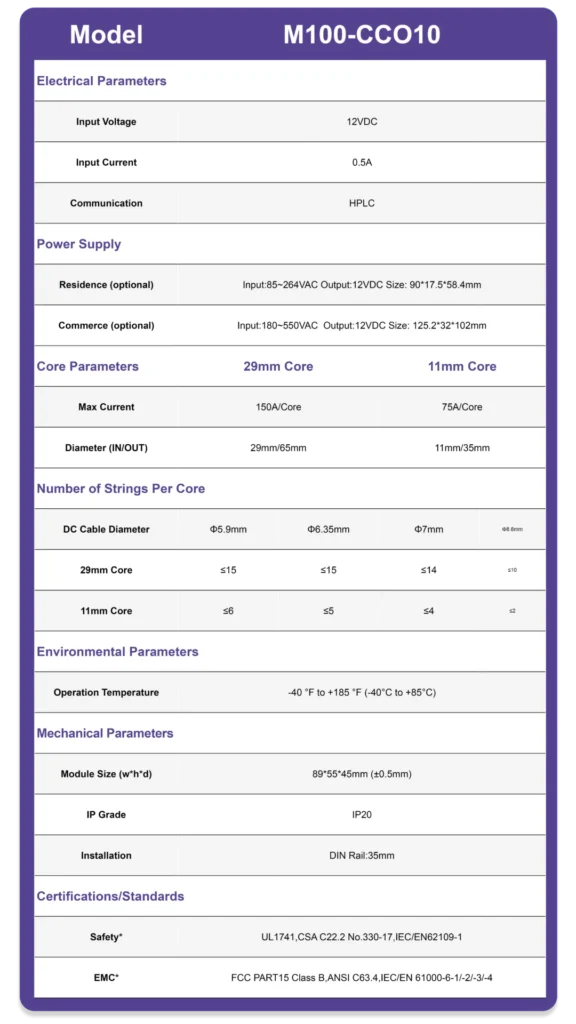

Specifications
| Model | M100 CCO10 | |||
|---|---|---|---|---|
|
Electrical Parameters |
||||
|
Input Voltage |
12 VDC |
|||
|
Input Current |
0.5A |
|||
|
Communication |
HPLC |
|||
|
Power Supply |
||||
|
Residence (optional) |
Input:85~264VAC Output:12VDC Size: 90*17.5*58.4mm |
|||
|
Commerce (optional) |
Input:180~550VAC Output:12VDC Size:: 25.2*32*102mm |
|||
|
Core Parameters |
29mm Core |
11mm Core |
||
|
Max Current |
150A/Core |
75A/Core |
||
|
Diameter (IN/OUT) |
29mm/65mm |
11mm/35mm |
||
|
Number of Strings Per Core |
||||
|
DC Cable Diameter |
Φ5.9mm |
Φ6.35mm |
Φ7mm |
Φ8.6mm |
|
29mm Core |
≤15 |
≤15 |
≤14 |
≤10 |
|
11mm Core |
≤6 |
≤5 |
≤4 |
≤2 |
|
Environmental parameters |
||||
|
Operation Temperature |
-40 °F to +185 °F (-40°C to +85°C) |
|||
|
Mechanical Parameters
|
||||
|
Module Size (w*h*d) |
89*55*45mm (±0.5mm) |
|||
|
Protection Class |
IP20 |
|||
|
Installation |
DIN Rail:35mm |
|||
|
Certificates |
||||
|
*Safety Certification |
UL1741,CSA C22.2 No.330-17,IEC/EN62109-1 |
|||
|
*Electromagnetic
Compatibility |
FCC PART15 Class B,ANSI C63.4,IEC/EN 61000-6-1/-2/-3/-4 |
|||
|
* Related certifications in progress |
||||
