M100-80 Series

SMART PV MONITOR

Features

  • Module Level Monitoring

    Full visibility into module and system-level production.

  • Rapid Shutdown

    PV Module-Level Shutdown to ensure fire and O&M safety.

  • Active Safety

    Real-time data monitoring, 0V shutdown voltage.

  • Flexible

    Long string design.

  • Reliable Communication

    Wideband power line carrier communication technology.

  • Higher Efficiency

    Ultra-low power consumption, wide operating voltage range. 99.9% maximum.

  • Convenient Installation

    Compatible with bolt and snap fastening, plug and play.

  • Highly Reliable

    IP68 dust and waterproof rating.

  • Intelligent O&M

    Component-level data management and intelligent trouble-shooting.

Appearance

Dimensions

Wiring Diagrams

Specifications

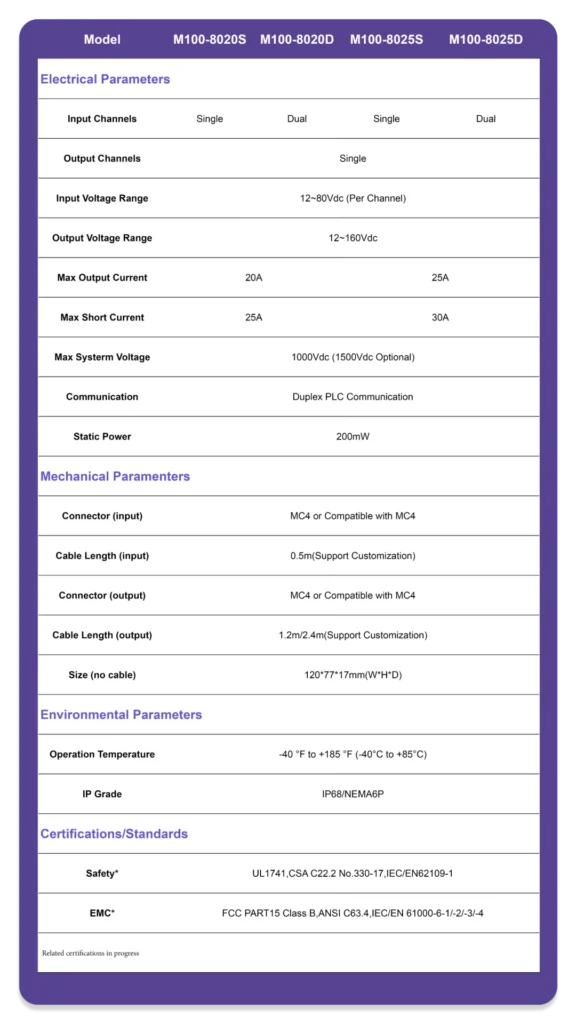

Model M100-80-20S M100-80-20D M100-80-25S M100-80-25D
Electrical Parameters
Input Channels
Single
Dual
Single
Dual
Output Channels
Single
Input Voltage Range
12~80Vdc(per channel)
Output Voltage Range
12~160Vdc
Max Output Current
20A
25A
Max Short Current
25A
30A
Max System Voltage
1000Vdc(1500Vdc Optional)
Communication
Duplex PLC Communication
Static Power
200mW
Mechanical Parameters
Input Connector
MC4 or Compatible with MC4
Input Cable Length
0.5m(Support Customization)
Output Connector
MC4 or Compatible with MC4
Output Cable Length
1.2m/2.4m(Support Customization)
Dimension
120*77*17mm(W*H*D)
Environmental Parameters
Operation Temperature
-40 °F to +185 °F (-40°C to +85°C)
Protection Class
IP68 / NEMA6P
Certificates
Safety Certification*
UL1741,CSA C22.2 No.330-17,IEC/EN62109-1
Electromagnetic Compatibility *
FCC PART15 Class B,ANSI C63.4,IEC/EN 61000-6-1/-2/-3/-4
* Related certifications in progress

Specifications

Smart PV Monitor

Download

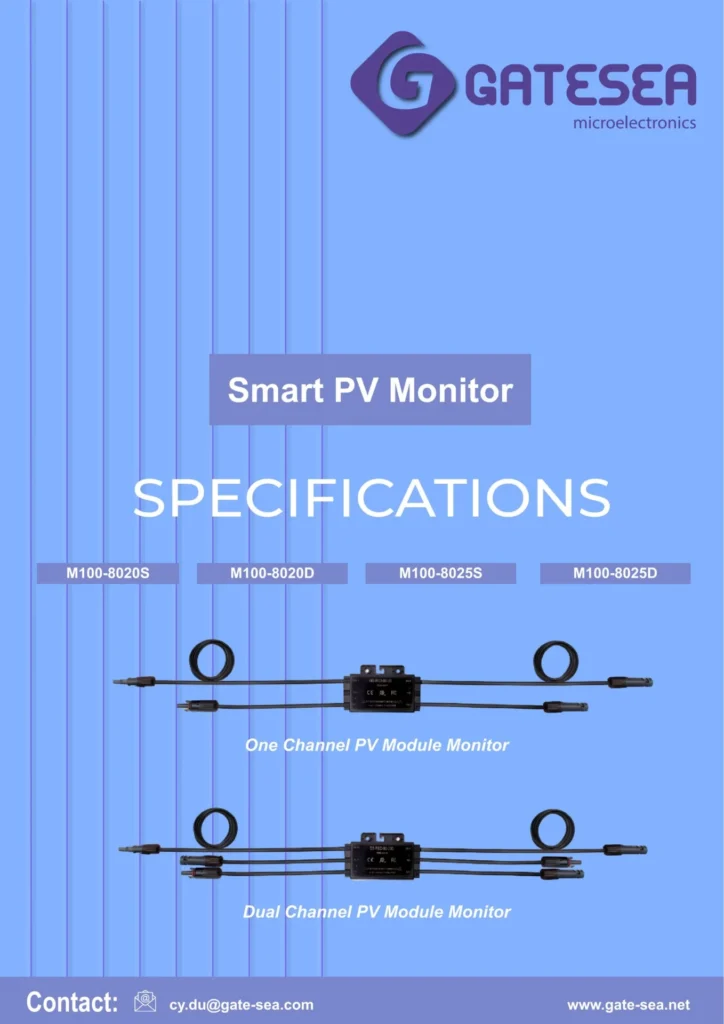

M100-80 Series Specifications
