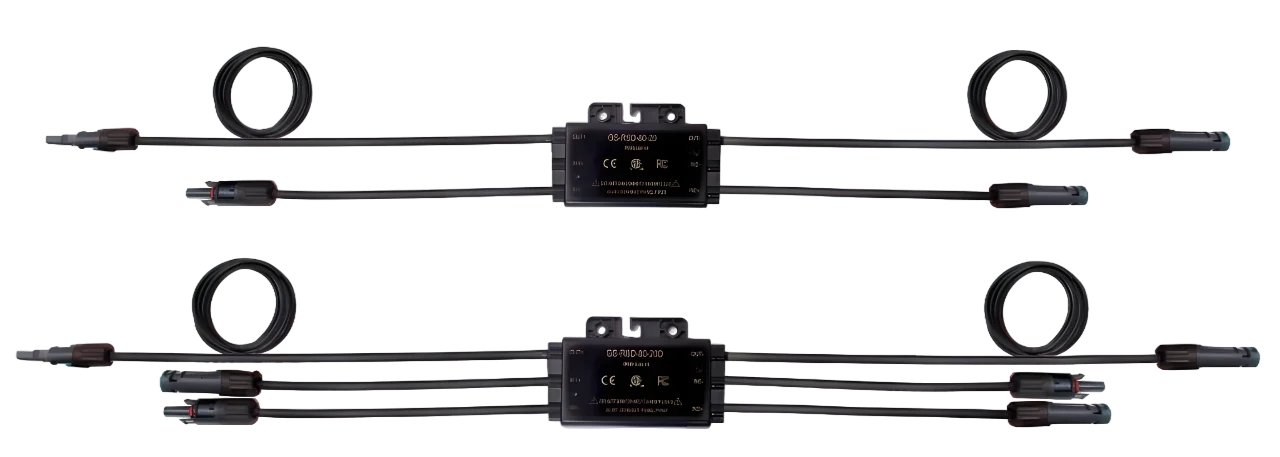

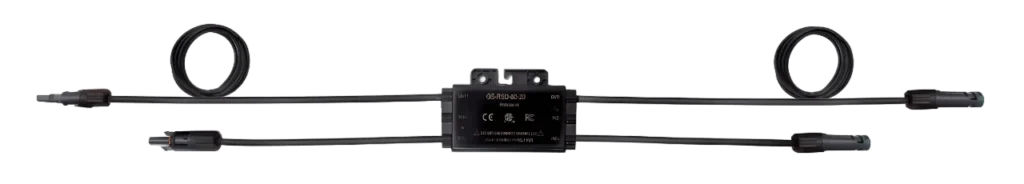

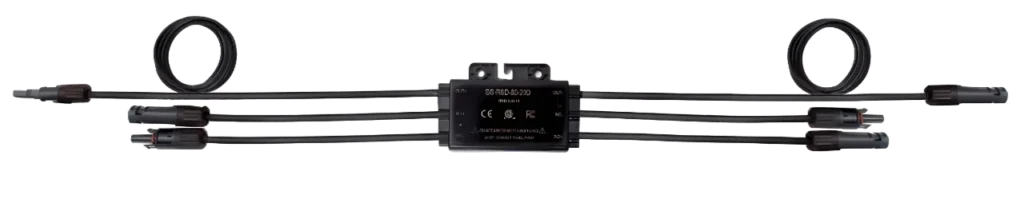

GS-RSD-80 Series

Rapid Shutdown

Module-Level PV Rapid Shutdown. Ensure ﬁre and O&M safety.
Active Safety

1V shutdown voltage, a variety of shutdown methods, to prevent the problem before it occurs.

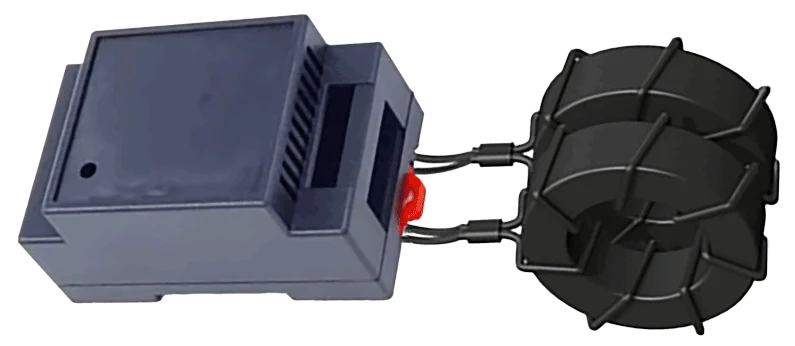

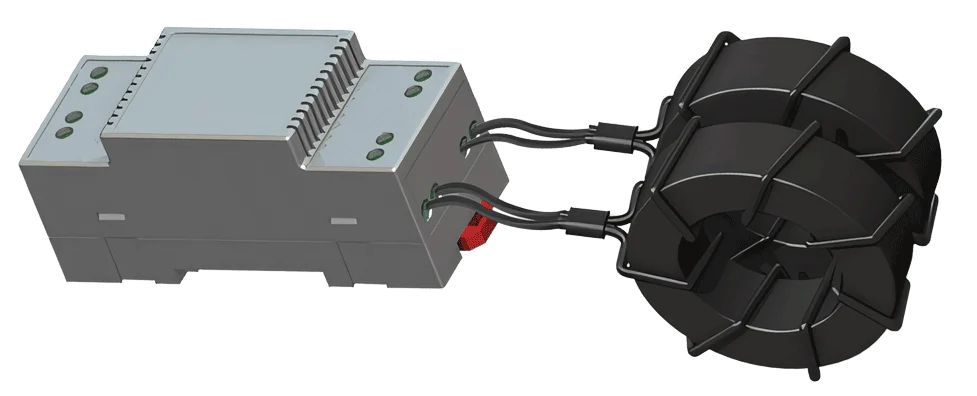

PLC Communication

SunSpec RSD compliance.

Higher Eﬃciency

Ultra-low power consumption, wide operating voltage range.
Convenient Installation

Compatible with bolt and snap fastening, plug and play.

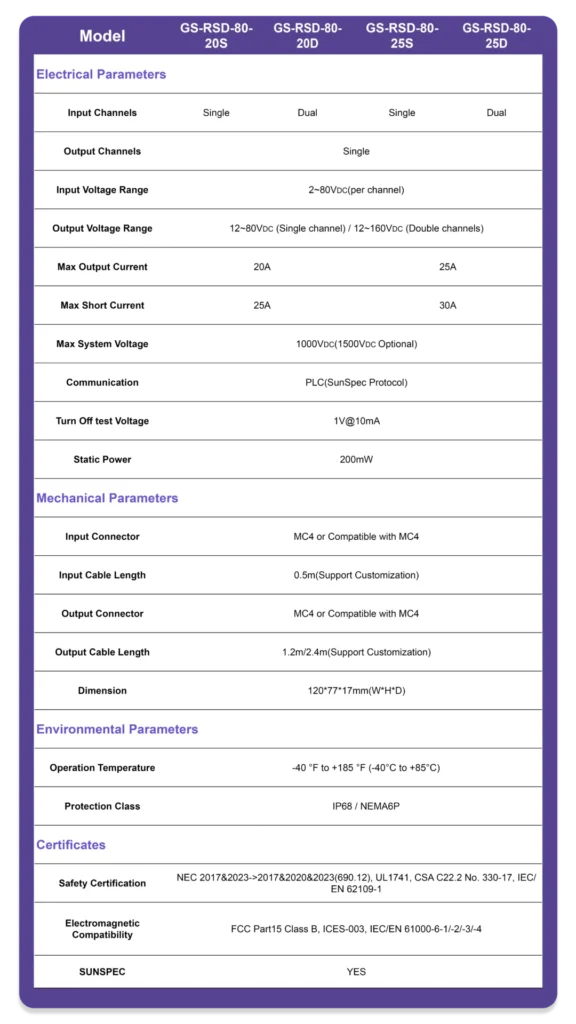

Model	GS-RSD-80-20S	GS-RSD-80-20D	GS-RSD-80-25S	GS-RSD-80-25D
Electrical Parameters

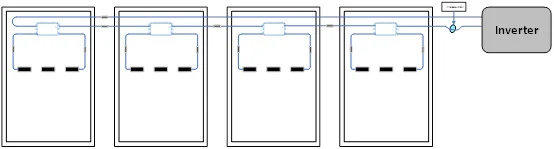

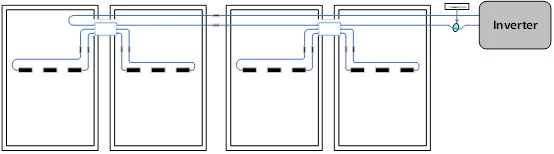

Input Channels	Single	Dual	Single	Dual
Output Channels	Single
Input Voltage Range	2~80Vdc(per channel)
Output Voltage Range	12~80Vdc (Single channel) / 12~160Vdc (Double channels)
Max Output Current	20A		25A
Max Short Current	25A		30A
Max System Voltage	1000Vdc(1500Vdc Optional)
Communication	PLC(SunSpec Protocol)
Turn Off Test Voltage	1V@10mA
Static Power	200mW
Mechanical Parameters
Input Connector	MC4 or Compatible with MC4
Input Cable Length	0.5m(Support Customization)
Output Connector	MC4 or Compatible with MC4
Output Cable Length	1.2m/2.4m(Support Customization)

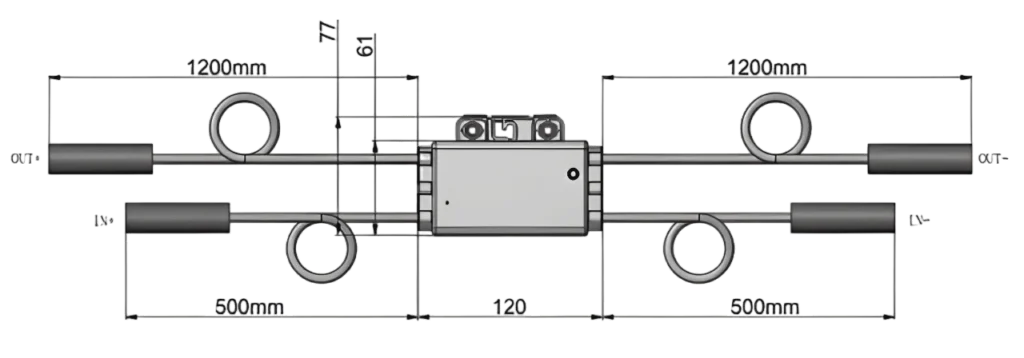

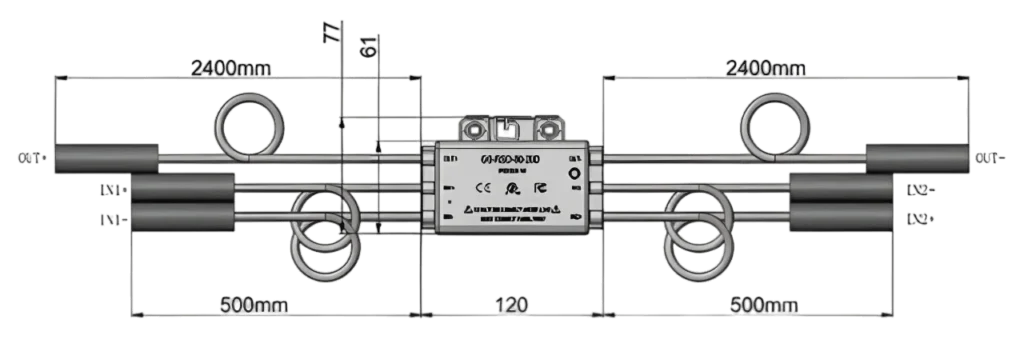

Dimension	1207717mm(WHD)
Environmental Parameters
Operation Temperature	-40 °F to +185 °F (-40°C to +85°C)
Protection Class	IP68 / NEMA6P
Certificates
Safety Certification	NEC 2017&2023->2017&2020&2023(690.12), UL1741, CSA C22.2 No. 330-17, IEC/EN 62109-1
Electromagnetic Compatibility	FCC Part15 Class B, ICES-003, IEC/EN 61000-6-1/-2/-3/-4
SUNSPEC	YES
