GTR10
PV RAPID SHUTDOWN TRANSMITTER
Introduction
The GateSea rapid shutdown PLC signal transmitter complies with the NEC2017&2023->2017&2020&2023(690.12) rapid shutdown specifications, as well as the SunSpec rapid shutdown protocol. It is available in both single and dual core options, with power supply choices of 85-264VAC for residential applications and 180-550VAC for commercial use.
Under normal conditions, the rapid shutdown transmitter sends a keep-alive signal to the rapid shutdown receiver to maintain power to the PV system. In the event of an emergency, the system can be rapidly shut down by activating the emergency stop switch or disconnecting the power supply to the transmitter.
Once the rapid shutdown signal transmitter is reactivated, the PV system resumes power production, allowing for a swift return to normal operation.

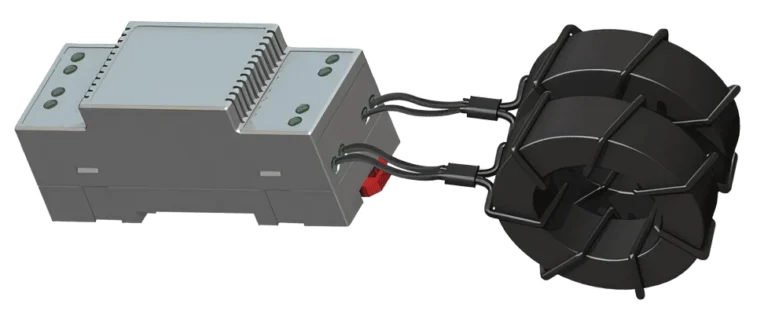

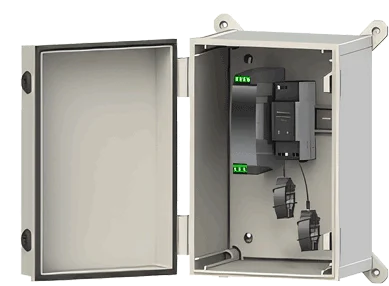

Appearance

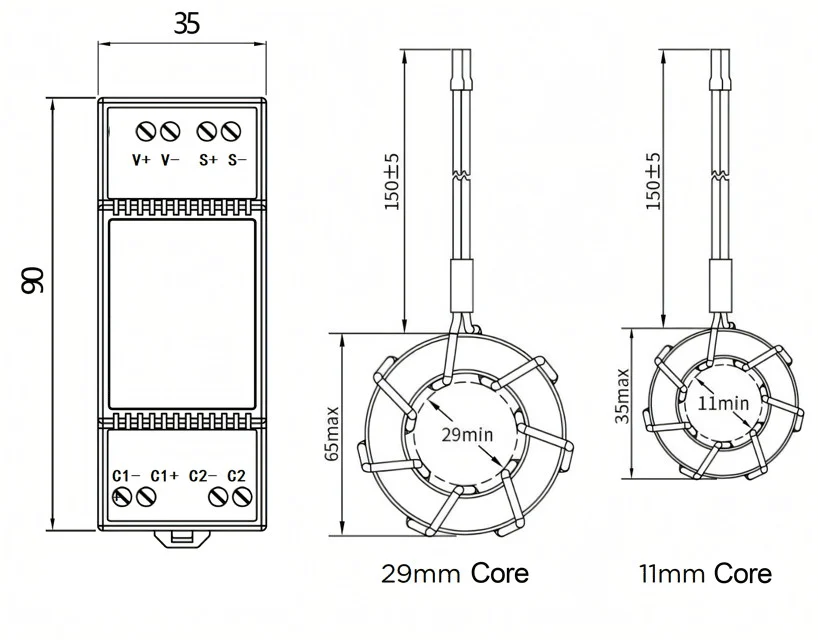

Dimensions
PLC core lead available for options: 150mm, 180mm, 300mm, 600mm
Wiring Diagrams

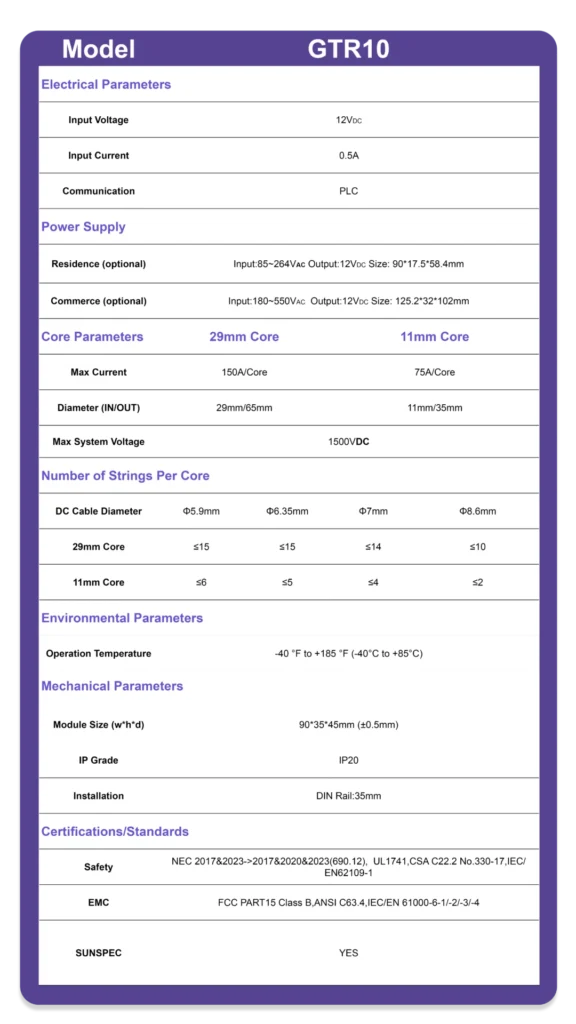

Specifications
| Model | GTR10 | |||
|---|---|---|---|---|
|
Model
Electrical Parameters |
||||
|
Model
Input Voltage |
GTR10
12 VDC |
|||
|
Model
Input Current |
GTR10
0.5A |
|||
|
Model
Communication |
GTR10
PLC |
|||
|
Model
Power Supply |
||||
|
Model
Residence (optional) |
GTR10
Input:85~264VACAC Output:12VDC Size: 90*17.5*58.4mm |
|||
|
Model
Commerce (optional) |
GTR10
Input:180~550VAC Output:12VDC Size: 125.2*32*102mm |
|||
|
Model
Core Parameters |
GTR10
29mm Core |
11mm Core |
||
|
Model
Max Current |
GTR10
150A/Core |
75A/Core |
||
|
Model
Diameter (IN/OUT) |
GTR10
29mm/65mm |
11mm/35mm |
||
|
Model
Max System Voltage |
GTR10
1500VDC |
|||
|
Model
Number of Strings Per Core |
||||
|
Model
DC Cable Diameter |
GTR10
Φ5.9mm |
Φ6.35mm |
Φ7mm |
Φ8.6mm |
|
Model
29mm Core |
GTR10
≤15 |
≤15 |
≤14 |
≤10 |
|
Model
11mm Core |
GTR10
≤6 |
≤5 |
≤4 |
≤2 |
|
Model
Environmental parameters |
||||
|
Model
Operation Temperature |
GTR10
-40 °F to +185 °F (-40°C to +85°C) |
|||
|
Model
Mechanical Parameters
|
||||
|
Model
Module Size (w*h*d) |
GTR10
90*35*45mm (±0.5mm) |
|||
|
Model
Protection Class |
GTR10
IP20 |
|||
|
Model
Installation |
GTR10
DIN Rail:35mm |
|||
|
Model
Certificates |
||||
|
Model
Safety Certification |
GTR10
NEC 2017&2023->2017&2020&2023(690.12), UL1741, CSA C22.2 No. 330-17, IEC/EN 62109-1 |
|||
|
Model
Electromagnetic
Compatibility |
GTR10
FCC PART15 Class B,ANSI C63.4,IEC/EN 61000-6-1/-2/-3/-4 |
|||
|
Model
SUNSPEC |
GTR10
YES |
|||
