GS-RSD-80 Series
Introduction:
GS-RSD-80 series are the receivers in the module-level PV rapid shutdown system in order to provide a convenient, economical way to help meet the requirements of NEC2017/NEC2020 690.12 and ensure safety for fire rescue and other emergency aid workers.
Dimensions:
GS-RSD-80 series consists of two RSD types in terms of the number of PV modules to be connected: Single input channel RSD for connecting one PV module and dual input channel RSD for connecting two PV modules.The dimensions are shown respectively in the figures below:

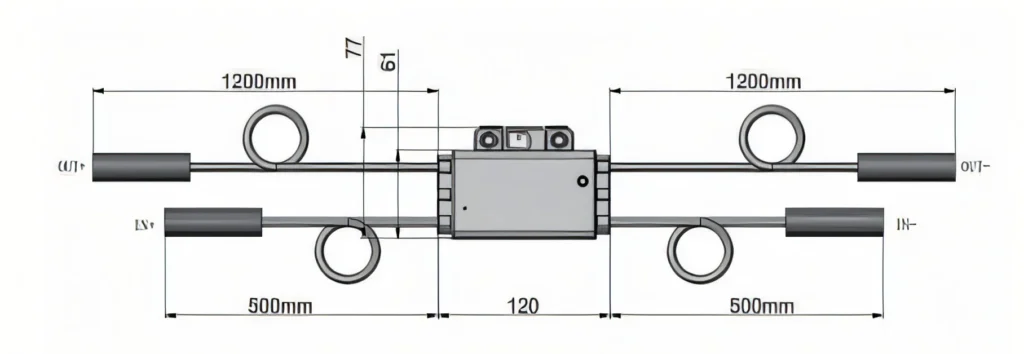

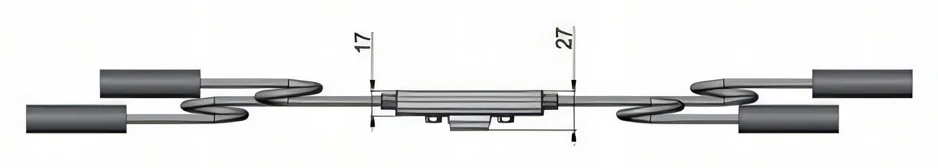

RSD With Single Input Channel

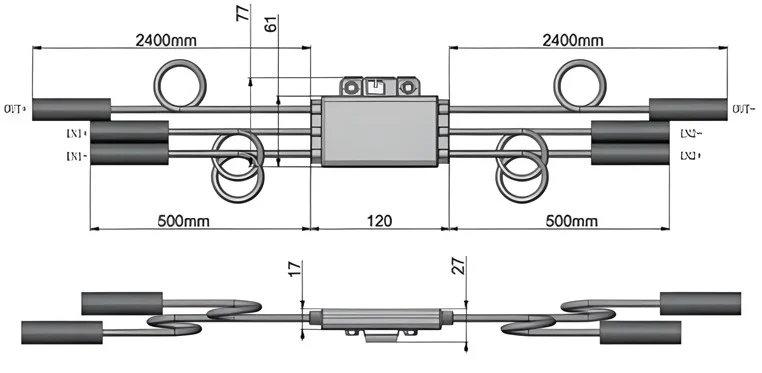

RSD With Dual Input Channel
Application 1
Non SunSpec RSD Compliant & Hybrid Inverters with RSD Devices

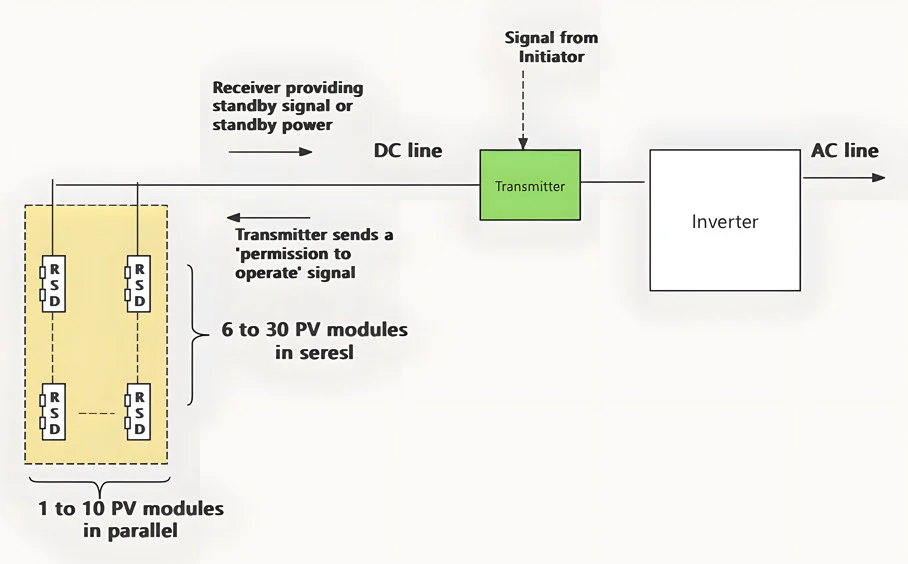

In Non SunSpec RSD Compliant &Hybrid Inverters system, a Transmitter device (Transmitter-PLC/Transmitter-PLC Outdoor Kit) needs to be installed together with RSD Devices (GS-RSD-80 series) to realize module-level rapid shutdown function.
Application 2
SunSpec RSD Compliant & Hybrid Inverters with RSD Devices
In SunSpec RSD Compliant Inverters system, only RSD Devices (GS-RSD-80 series) are needed for the modules to realize module-level rapid shutdown function.
